Digital Control Induction Preheating Welding PWHT Stress Relieving Machine
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | Canroon |
| Certification | CE ISO9001:2008 |
| Model Number | CR2000 |
| Minimum Order Quantity | 1SET |
| Price | Negotiation |
| Packaging Details | Wooden case, neutral carton |
| Delivery Time | Most items are with stock for sample order within 2 days for shipping, bulk order in 7 days |
| Payment Terms | L/C,T/T,Western Union |
| Supply Ability | 200 Piece/Pieces per Week |
Product Details
| Machine Type | Induction Heating Machine | Weight (KG) | 60 |
|---|---|---|---|
| Voltage | 3-phase 380-460V | Core Components | PLC, Bearing, Gear |
| Output Power | 72kW(duty Cycle 100%) | Input Current | 96-144A |
| Heating Temperature | Can Reach 788℃ | Input Frequency | 50-60Hz |
| Output Frequency | 2.5-35KHz | Mobility | Movable With Universal Wheels |
| Applications | PWHT/post Weld Heat Treatment For Steel And Stainles | Cooling Method | Air Cooling |
| Highlight | Digital Control Induction Preheating Welding,PWHT Stress Relieving Machine,Digital Control PWHT Machine |
||
Product Description
Induction Preheating Welding Machine weld preheat PWHT stress relieving machine
Brand: Canroon(China manufacturer)
Power: 80KVA (also supply 5KVA, 10KVA, 80KVA, 120KVA)
Frequency: 3-35kHZ
Heating temperature: can be high as 788℃
Voltage: 3phase, 380-460V, 50/60HZ,
Suitable pipe size: 200-800mm diameter, 25-60mm thickness
cooling system: air cooling
Application industries: offshore platform, power station, oil and gas pipeline construction, etc
Applications: PWHT/ post weld heat treatment, aslo efficient for welding preheat, joint anti-corrosion coating
Features: movable, accurate temperature control, digital control, self-fault diagnosis, modular design, etc
Details of Digital Control Induction Preheating Welding PWHT Stress Relieving Machine
Accessories list of Digital Control Induction Preheating Welding PWHT Stress Relieving Machine
| Name | Specifications | Model No. | Length | Cooling | Power Source |
| Air-cooled induction cable | wire gauge: 50mm2 working temp.: max. 180℃ Connector:5-pin |
CR130-005-GD1 | 5M | Air Cooling | 5KVA 10KVA |
| CR130-008-GD1 | 8M | ||||
| CR130-010-GD1 | 10M | ||||
| wire gauge: 110mm2 working temp.: max. 180℃ Connector:1-pin |
CR130-015-AA1 | 15M | 40KVA 80KVA | ||
| CR130-020-AA1 | 20M | ||||
| CR130-025-AA1 | 25M | ||||
| CR130-030-AA1 | 30M | ||||
| CR130-040-AA1 | 40M | ||||
| CR130-050-AA1 | 50M | ||||
| wire gauge: 120mm2 working temp.: max. 180℃ Connector:1-pin |
CR130-015-EA1 | 15M | 120KVA | ||
| CR130-020-EA1 | 20M | ||||
| CR130-025-EA1 | 25M | ||||
| CR130-030-EA1 | 30M | ||||
| CR130-040-EA1 | 40M | ||||
| CR130-050-EA1 | 50M | ||||
| Output Extension Cable |
wire gauge: 2*50mm2 Connector:5-pin | CR140-005FD1 | 5M | Air Cooling | 5KVA 10KVA |
| CR140-010-FD1 | 10M | ||||
| CR140-015-FD1 | 15M | ||||
| wire gauge: 2*100mm2 Connector:1-pin | CR140-010-DA1 | 10M | 40KVA 80KVA 120KVA |
||
| CR140-015-DA1 | 15M | ||||
| CR140-020-DA1 | 20M | ||||
| Series Cable Adaptor |
wire gauge: 50mm2 Connector:5-pin | CR140-1X5-GD1 | 1.5M | Air Cooling | 5KVA 10KVA 40KVA 80KVA 120KVA |
| wire gauge: 110mm2 Connector:1-pin | CR140-1X5-AA1 | 1.5M | |||
| Induction Cable Protective Sleeve | width:10 CM Continuously working temp:250℃； Max. temp: 600℃ for 15~30s Material: Kevlar |
CR180-005-BC1 | 5M | Air Cooling | 5KVA 10KVA |
| CR180-008-BC1 | 8M | ||||
| CR180-010-BC1 | 10M | ||||
| width:12 CM Continuously working temp:250℃； Max. temp: 600℃ for 15~30s Material: Kevlar |
CR180-015-AC1 | 15M | 40KVA 80KVA 120KVA |
||
| CR180-020-AC1 | 20M | ||||
| CR180-025-AC1 | 25M | ||||
| CR180-030-AC1 | 30M | ||||
| CR180-040-AC1 | 40M | ||||
| CR180-050-AC1 | 50M |
Details of Digital Control Induction Preheating Welding PWHT Stress Relieving Machine

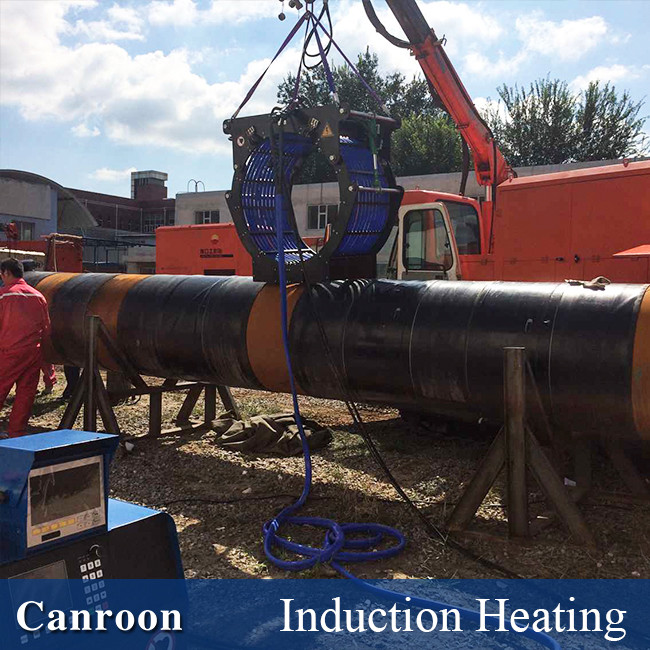

Post weld heat treatment for steel pipes:
Post weld heat treatment for stainless steel pipes:
Digital Control Induction Preheating Welding PWHT Stress Relieving Machine for different applications
C type inductor(usually for pipe welding preheat), blanket type inductor(usually for pipe welding preheat, PWHT),
plate type inductor(usually for pipe welding preheat), split core type inductor(manual & hydraulic)(usually for
joint anti-corrosion coating).
Accessories of Digital Control Induction Preheating Welding PWHT Stress Relieving Machine
We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder,
remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and
ensures you to start work soon after received our delivery.
